Ultimate Magnetic Crawler

Magg™ is a proven and reliable remote inspection crawler system designed to withstand harsh conditions and industrial environments.

With it’s industry-leading tracks, the Magg can quickly and easily navigate critical restricted access areas, whether the surface is clean or close to unpracticable. The unique combination of raw power, agility, and magnetic downforce allows the Magg to accomplish inspections that most wheeled vehicles and crawlers could not.

Any owner or service provider required to perform ultrasonic testing (UT), alternating current field measurement (ACFM®), or remote visual inspection (RVI) in confined spaces with limited access needs to add the Magg as an essential part of their NDT toolkit.

Rugged Inspection Camera

The fully integrated HD continuous tilt camera allows incredible details and clarity. Whether you’re close, far, underwater, or in a dark tank, the image will provide you with an astounding amount of detail.

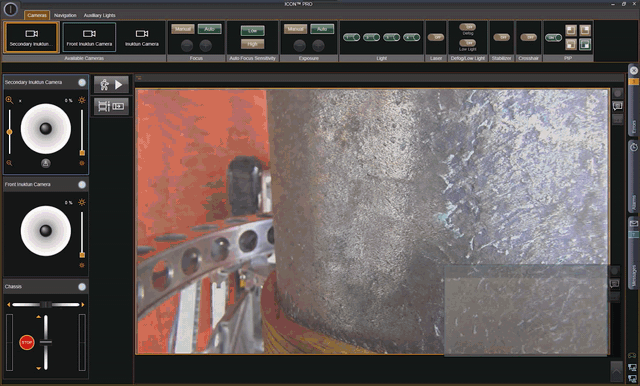

The ICON™ software records all the RVI data. Operators can easily take a snapshot of any areas of interest and then correlate it with the sensor data collected from the vehicle-mounted UT probe.

The Magg comes with auxiliary lighting, lasers, 10x optical zoom, and much more. From top to bottom, the system has been uniquely optimized to allow a clear image streamed in a matter of milliseconds, allowing real-time decision-making.

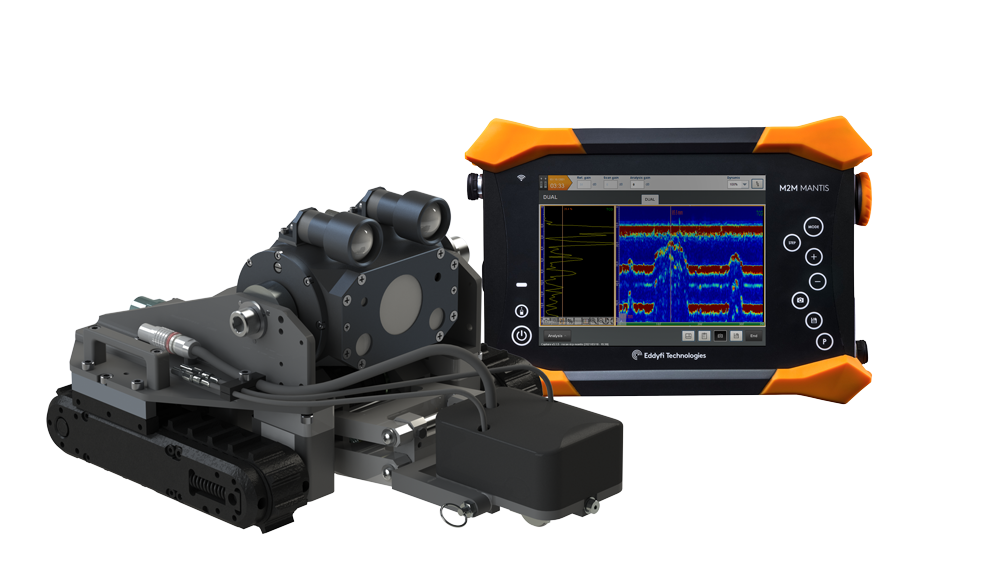

Magg™ R-Scan: A Working Team That Will Go The Distance

Ultrasonic Testing (UT) and Remote Visual Inspection (RVI)

The R-Scan package allows for the collection of UT wall thickness measurements up to a distance of 30m (100ft), making the RVI-capable Magg a unique and versatile inspection solution.

UT thickness measurements are collected every 1mm (0.04in) and displayed to the operator in real-time as a B-scan, A-scan trace, and thickness measurements. Compared to traditional spot readings, the R-Scan delivers a much higher Probability of Detection (PoD) with a reliable, recorded, and auditable data set and all from a safe location.

The Magg can be used as part of a regular maintenance and monitoring operation or to troubleshoot a problem quickly in an emergency.

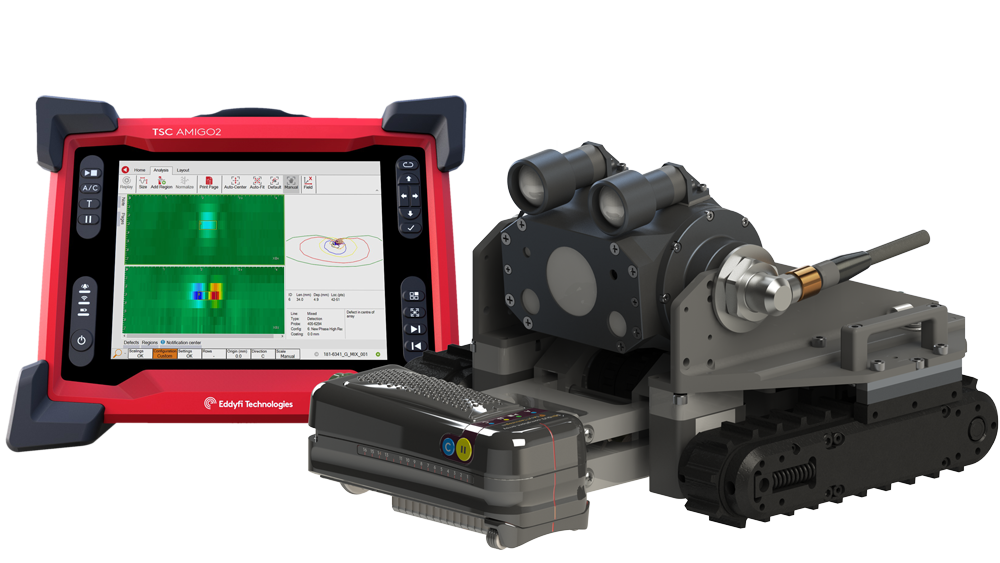

Magg ACFM®: Going the Distance for Weld Inspection

Alternating Current Field Measurement (ACFM) and Remote Visual Inspection

ACFM technology has developed a solid reputation for accurately detecting and sizing surface-breaking cracks through paint and coatings.

ACFM is a rugged, tolerant NDT technique ideal for as-is inspection of coated structures, rough welds, and complex geometries. Achieving quantitative assessment of cracking with a High Probability of Detection (POD) is possible even in the most challenging conditions. When inspecting for cracks that often develop in high rising structural steels, ACFM is the perfect NDT technique.

The ACFM package allows for surface-breaking crack detection in addition to visual inspection up to a distance of 50m (164ft), making the Magg a unique and versatile inspection solution.
