Everything You Need to Know
One Instrument. Every Inspection.
From aerospace airframes to wind turbine blades and oil & gas components — the MIZ-21C delivers ECA and conventional ECT in a single 1.2 kg handheld device.
No compromises.
95%
Faster than pencil probes
40:1
Signal-to-noise ratio
1.2 kg
One-hand operation
10 h
Battery life — full shift
The Solution
One Instrument. Every Application.
The MIZ-21C delivers ECA and conventional ECT in a single handheld device — and serves as a direct replacement for PT and MT in most surface inspection applications. Faster setup, immediate results, full data capture.
Step 01 — Setup in Minutes
Intuitive touchscreen with automatic probe recognition via Zetec ID Chip.
No complex calibration sequences.
Up and running before your first scan.
Step 02 — Scan with Surface Array
The Surf-X Array probe covers more surface area per pass — up to 95% faster than pencil probe scanning.
Industry-leading 40:1 SNR for reliable flaw detection.
Step 03 — Report Instantly
128 GB internal storage captures all inspection data.
Export via USB, Wi-Fi, or Bluetooth.
Depth sizing results and full digital report — ready before you leave the field.
Applications by Industry
Built for the Most Demanding Environments

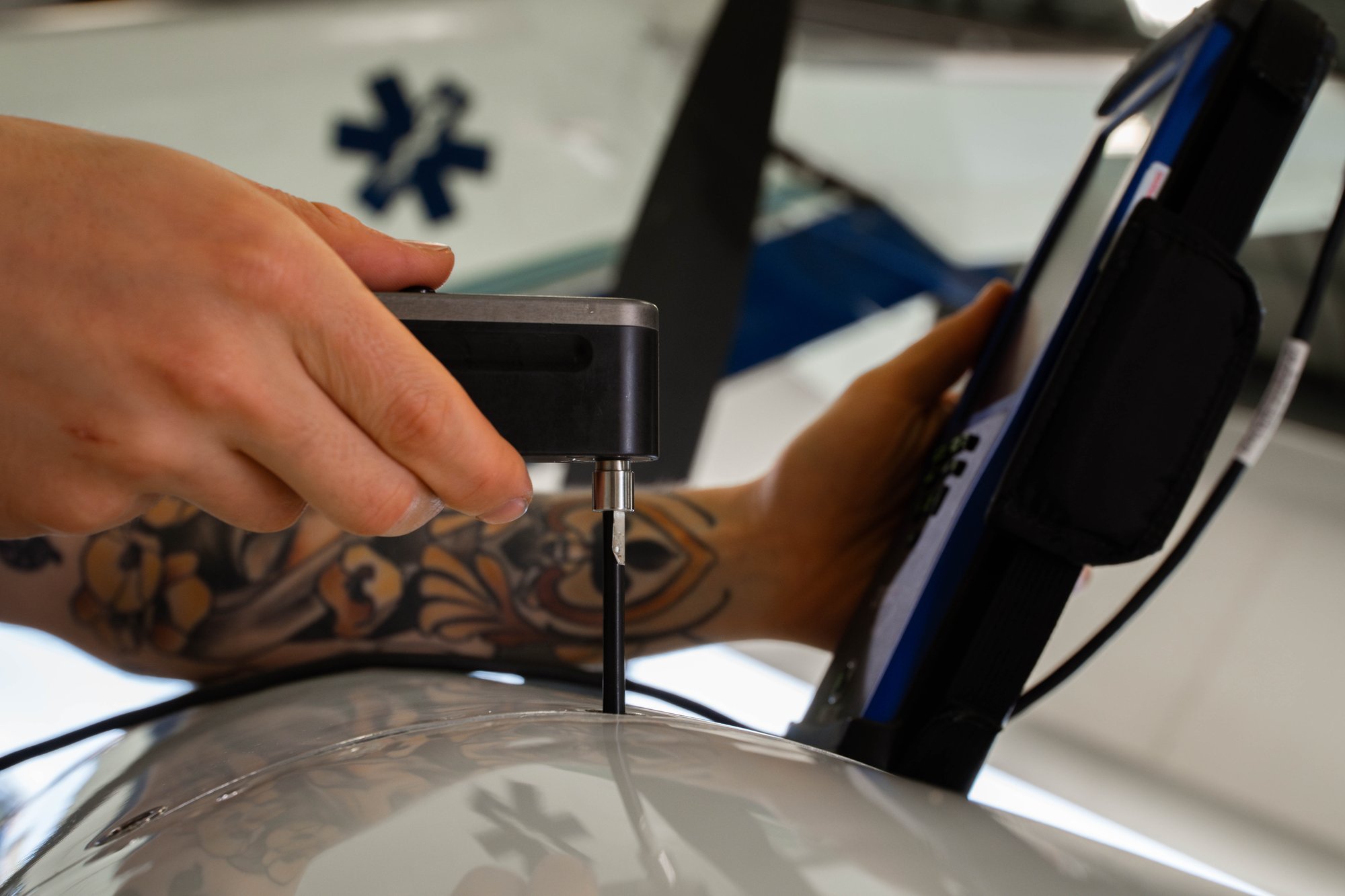

Aerospace
Airframe & Engine Inspection
-
Multi-layer corrosion detection in aluminum structures
-
Crack detection near fastener holes
-
Surface array inspection of fuselage panels
-
Conductivity and coating thickness measurement
-
Bolt hole inspection with rotating scanner
Oil & Gas
Asset Integrity in the Field
-
Surface crack detection on pressure vessels
-
Weld inspection in confined environments
-
Corrosion mapping on pipe surfaces
-
Inspection in high-temperature conditions (up to 50°C)
-
Portable deployment — no lab setup required
Power Generation
Turbine & Generator Components
-
Turbine blade surface inspection
-
Gear tooth crack detection
-
Generator component integrity assessment
-
Wind turbine gearbox inspection
-
Replacement for PT/MT in confined rotor access
Technical Specifications
Engineered for the Field
Every specification designed to maximize uptime and minimize friction in demanding inspection environments.
| Specification | Value |
|---|---|
| Weight | 1.2 kg (2.6 lb) including batteries |
| Dimensions | 267 × 122 × 38 mm |
| Display | 5.7" multi-touch (480 × 640 px) |
| Battery life | Up to 10 hours / replaceable for 24h ops |
| Storage | 128 GB internal |
| Connectivity | USB 2.0, Wi-Fi, Bluetooth |
| Operating temp | -10°C to 50°C (14°F to 122°F) |
| Frequency range | 5 Hz to 10 MHz |
| Receiver gain | 10 to 123 dB |
| Calibration | ISO/IEC 17025:2005 compliant |
| Languages | EN, FR, ES, DE, ZH, JA, PT |
Available in Three Models
MIZ-21C-SF — Single Frequency · Conductivity
MIZ-21C — Dual Frequency · Conductivity · Rotating Scanner
MIZ-21C-ARRAY — Dual Frequency · ECA · Rotating Scanner (Recommended)
.jpg?width=2000&name=MIZ-21C%20PAUT%20Probe%20Aerospace%20(7).jpg)
The Right Tool Is One Conversation Away.
Talk to a specialist. Get a demo tailored to your application.
Frequently asked questions
Can the MIZ-21C fully replace PT and MT inspections?
In most surface inspection applications, yes. The MIZ-21C detects surface and near-surface flaws without chemicals, surface preparation, or dwell time. It also produces a digital data record that PT and MT cannot provide. For applications with specific regulatory requirements for PT or MT, consult your inspection procedure documentation.
Which industries is the MIZ-21C designed for?
The MIZ-21C is primarily positioned for aerospace, oil & gas, and power generation. It performs well in any application requiring surface crack detection, multi-layer corrosion inspection, depth sizing, or conductivity measurement on conductive materials.
What is the difference between the three MIZ-21C models?
The MIZ-21C-SF covers single-frequency ECT and conductivity. The MIZ-21C adds dual-frequency capability and rotating scanner support. The MIZ-21C-ARRAY adds full eddy current array (ECA) with the Surf-X probe for high-speed surface scanning. Most applications benefit from the ARRAY model.
Does the MIZ-21C work with existing Zetec probes and accessories?
Yes. The MIZ-21C uses standard Lemo connectors (18-pin ECT, 26-pin ECA) and is compatible with thousands of off-the-shelf Zetec accessories. Automatic probe recognition via Zetec ID Chip eliminates manual setup.
