PAUT and UT

Advanced Phased Array and Ultrasonics Solutions

GEKKO

Be the best inspector you can be

M2M Gekko® is a field-proven flaw detector offering PAUT, UT, TOFD and TFM through the streamlined user interface Capture™. Released in 32:128, 64:64 or 64:128 channel configurations, Gekko combines high-resolution and speed while reducing inspectors’ training time.

Built for All-level UT Inspectors With continuously added tools in one standalone application, Capture eases the inspection process and reduces operator errors. Without the need to use third-party software to load basic and advanced procedures, all-level UT inspectors have access to performance through a visual and guided interface. Capture offers a quick way to improve knowledge and requires minimum training for phased array inspectors.

M2M Gekko Weld Inspection Capture Software Analysis thumb-1
Benefits
  • Increased accuracy with high-resolution imaging
  • Advanced defect analysis with Total Focusing Method
  • Robust field unit with high battery autonomy
  • Easy setup with embedded scan plans
  • Evolutive software following inspectors feedback
Applications
  • Multi-group weld inspection procedures fully covered
  • HTHA and hydrogen damages inspection with TFM
  • Thick welds and CRA/stainless steel weld inspection enhanced with 128-element aperture
  • Corrosion mapping of large areas (up to 5 × 5 m [16.4 × 16.4 ft] / 1 mm [0.04 in] step)
  • Complex geometry dedicated solution for nozzle and fillet welds (Y and T joints)

Instruments

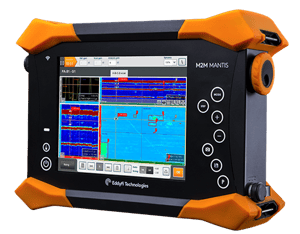

Mantis

A robust and lightweight flaw detector offering UT, PAUT, TOFD, and TFM through the streamlined user interface called CaptureTM. Ideal for automated and manual corrosion mapping.
Learn more

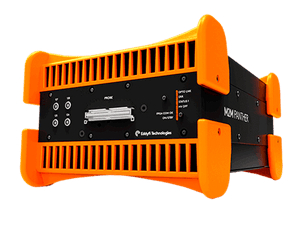

Panther

Combines the speed required for industrial integrated PAUT solutions, with the most complete set of Total Focusing Method (TFM) imaging techniques, making it the ultimate tool for R&D and procedure qualification.
Learn more

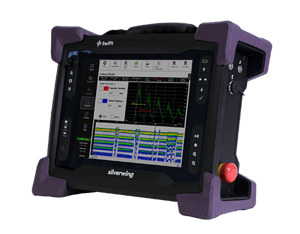

Swift UT

Design to drive the Scorpion2 tank shell crawler. The Swift UT software enables unique UT gate processing (such as floating and tracking gates), ensuring correct wall thickness measurements.
Learn more

Scanners

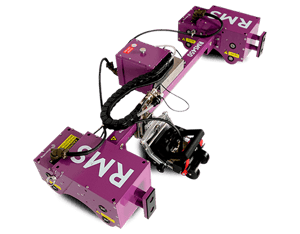

RMS PA

The robust, field-proven RMS robotic scanning head has been successfully deployed on various assets such as storage tanks, pressure vessels, pipelines, and other critical structures in harsh environments.
Learn more

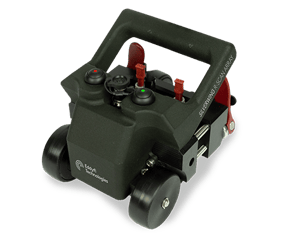

R-Scan Array

R-Scan Array semi-automated scanner is the perfect solution for the inspection of complex geometry components including curved surfaces, flat plate, pipelines, and restricted access areas.
Learn more

LYNCS WI

LYNCS WI weld inspection configuration can accommodate up to 6 PA and/or TOFD probes and has a dual-bar structure for enhanced stability and probe placement accuracy.
Learn more

LYNCS CM

A corrosion mapping scanner ideally suited to vessel and pipework inspection. Its low profile and lightweight design, make it perfect for rope access deployment and heavily congested pipework.
Learn more
